HSW JET-PACC

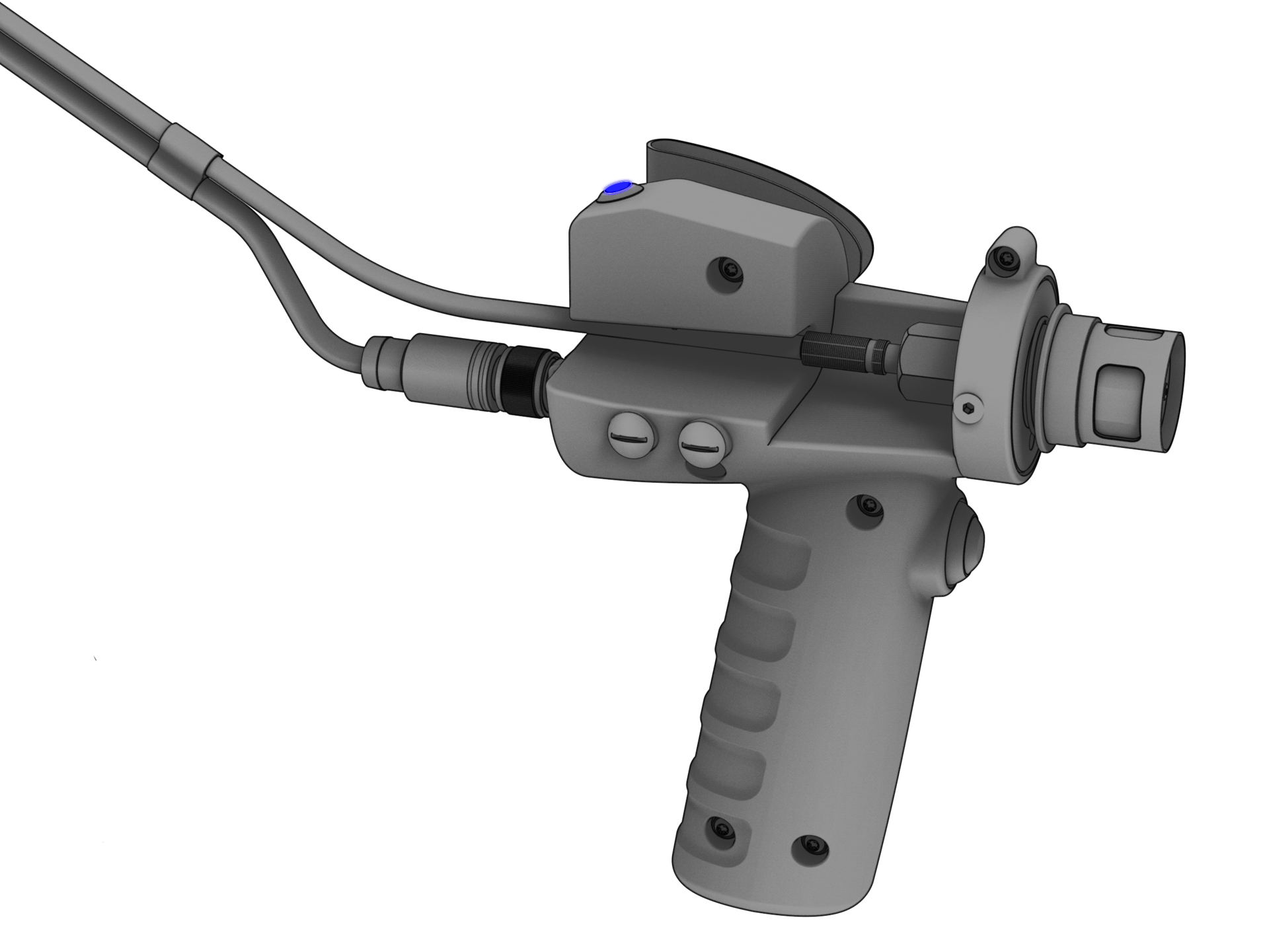

NEEDLE-FREE, ELECTRONIC INJECTOR FOR EFFICIENT MASS VACCINATION
The HSW Jet-PACCone is a needle-free, electronic injection system designed for efficient, ergonomic and animal-friendly intramuscular vaccination in professional livestock environments.
Based on high-pressure fluid jet technology, it enables precise, fast and consistent injections without needles. Its wearable design allows hands-free operation and supports high-throughput vaccination workflows.
Areas of application:
Key Features
- Needle-free intramuscular injection
- Ergonomic and wearable 2-part design
- designed for high-throughput vaccination, ideal for routine vaccinations and batch treatments
- < 1 second full injection cycle with automatic reloading
- dual-safety mechanism (trigger + safety sleeve) prevents unintended activation
- LED and vibration feedback on the handpiece confirms correct injection and supports intuitive operation
Bluetooth-enabled system with seamless connection to HSW Connect App (detailed documentation, precise tracking and analysis of vaccination processes)
WHY NEEDLE-FREE?
Rethinking vaccination workflows
• minimized pain and reduced animal stress
• enables a more hygienic and safer vaccination process
• eliminates needle breakage and needle fragments in the animal
• reduces handling of needles and minimizes needle-stick injury risks for operators
• Supports consistent injection quality
HSW Connect App
Digital Integration for Full Control
The HSW Jet-PACCone integrates advanced digital connectivity to support efficient and transparent vaccination workflows.
Via Bluetooth, the system connects seamlessly to the HSW Connect App, enabling convenient monitoring and management of the device and vaccination processes. The app supports the documentation of vaccination procedures, provides access to device diagnostics and enables system updates.
Veterinarians and farmers benefit from a user-friendly solution to track vaccination data, monitor device performance and generate reports – all within one centralized platform: HSW Connect App.

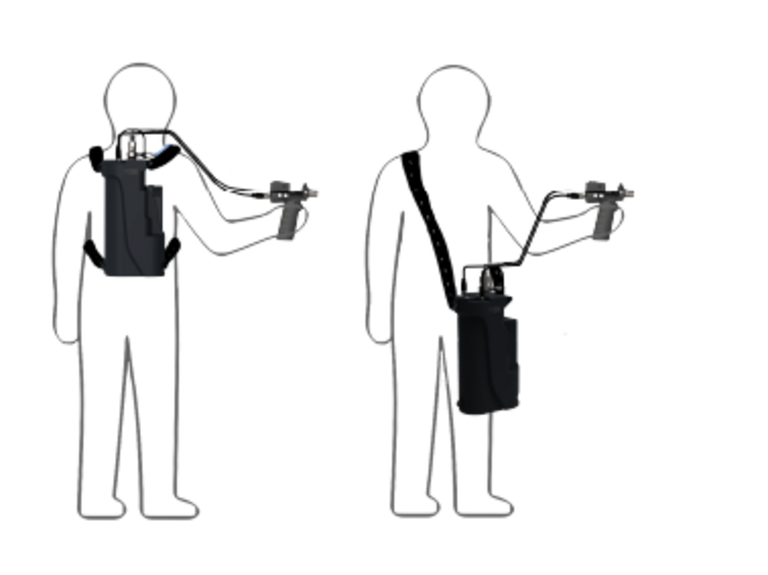

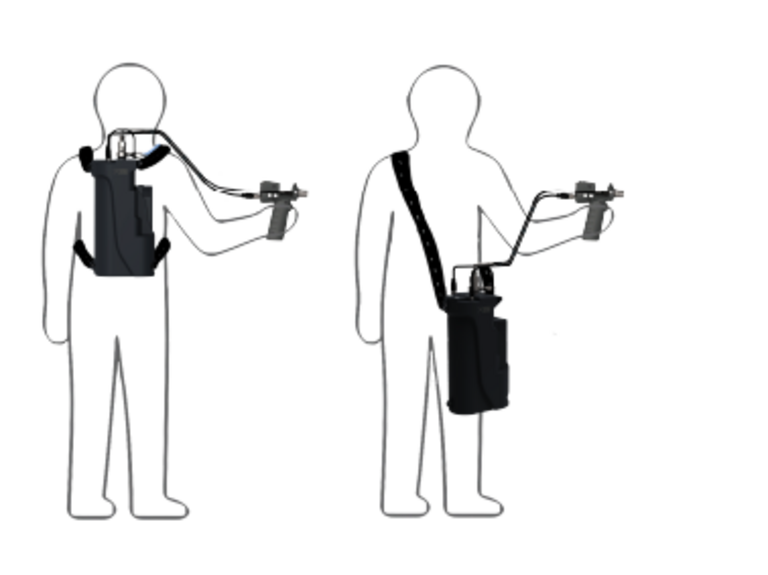

Flexible use
for every working environment

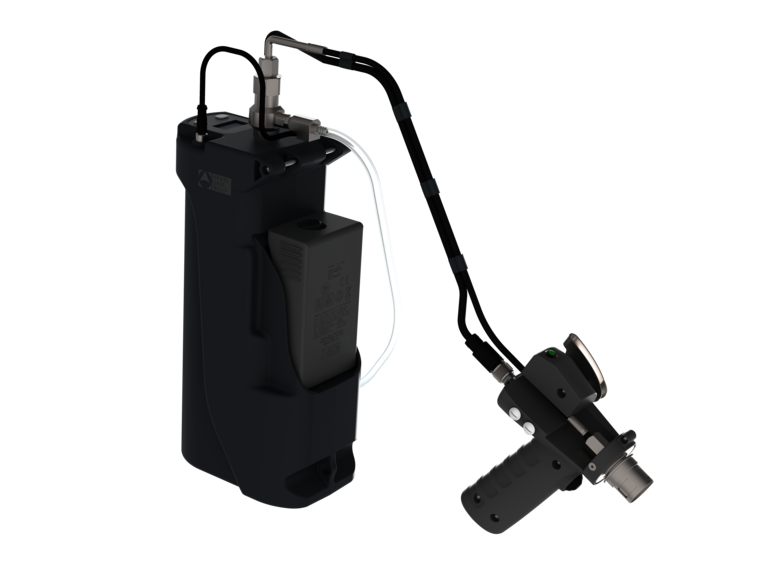

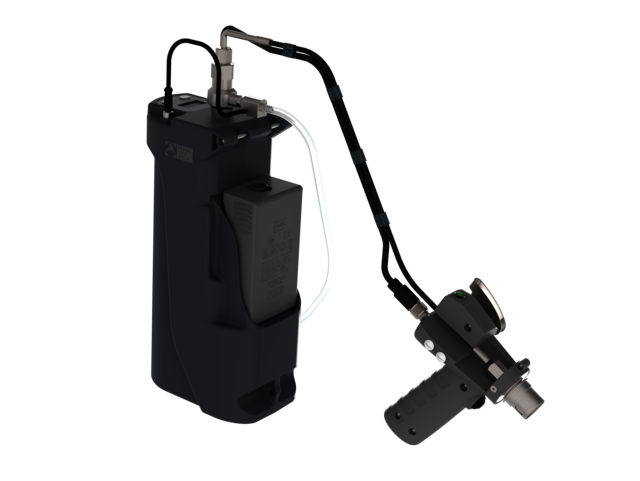

Backpack Solution:
Drive Unit can be carried ergonomically on the user‘s back using a comfortable harness system. Ideal for mobile, hands-free use during high-throughput vaccination in the field.
Belt-Mounted Solution:
Drive Unit can be worn at the waist with a belt or shoulder strap, allowing easy mobility in pens or barns while keeping the hands free for safe animal handling.
Stationary Trolley Setup:
Drive Unit can be mounted on a flexible treatment cart equipped with wheels and accessory storage. The setup provides continuous operation with minimal user fatigue. Ideal for clinics or stable environments with stationary mass treatment screnarios.
Technical Details
| INTENDED USE | needle-free intramuscular injection (veterinary use) |
| DOSE SELECTION | depending on model: 2 ml / 1 ml OR 2 ml / 0.5 ml |
| CYCLE TIME | < 1 second |
| BATTERY | 18 V Li-ion, 3000 mAh (~54 Wh); typical: min. 2000 injections |
| CHARGING TIME | approx. 2-3 hours (0°C to 45°C) |
| PROTECTION | IP56 (splash water resistant; not suitable for immersion) |
| CONNECTIVITY | Bluetooth; HSW Connect App |
| SERVICE AND WARRANTY | on-farm service every 36,000 injections; warranty: 2 years and at least 350,000 injections (per warranty conditions) |
